Texture is not loading when switched to WebGPU device
(getting this error in console):
Unsupported texture source data
<img crossorigin="anonymous" src="./textures/floor.jpg">
while works fine on Web GL2 (scrennshot below).
here is my whole working playcanvas engine only standalone project.

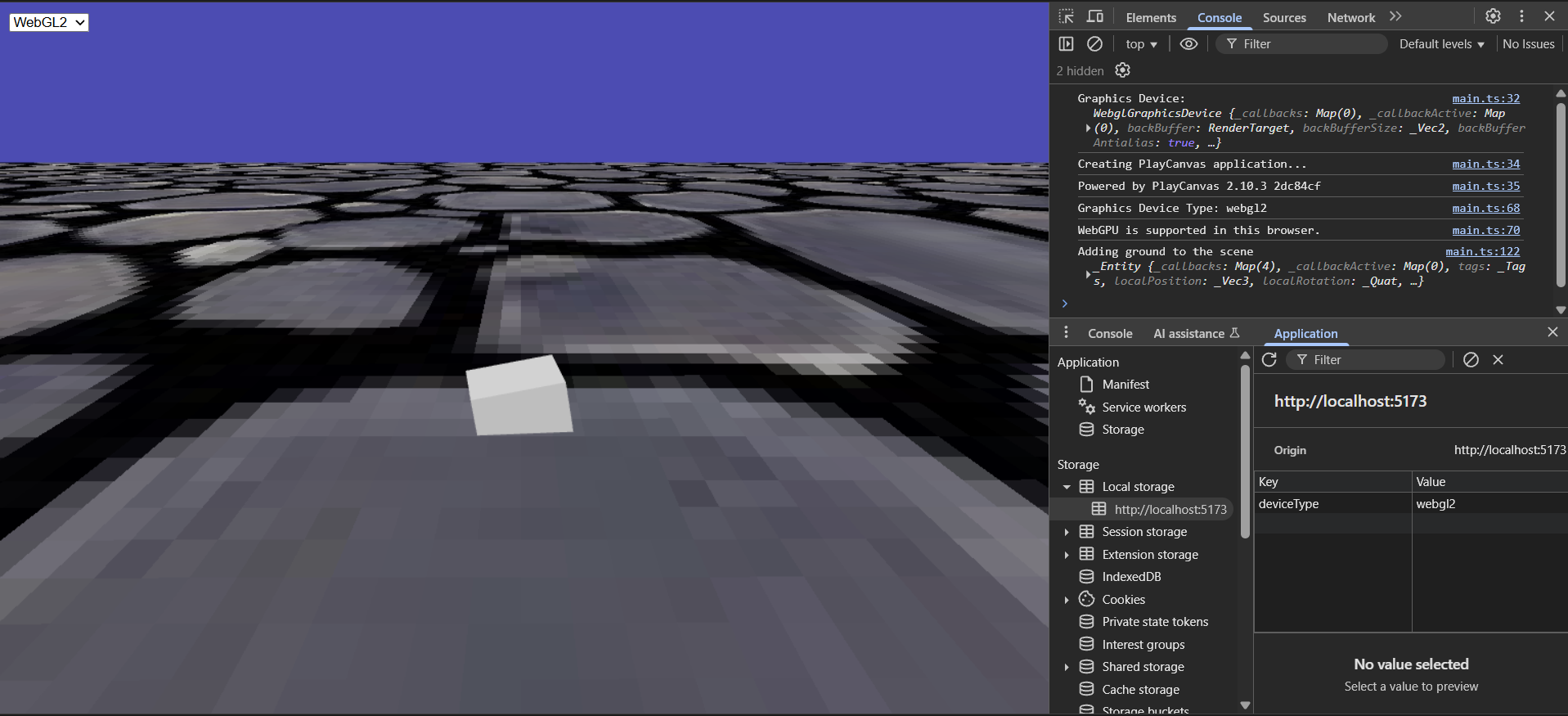

on webgl2, it works fine:

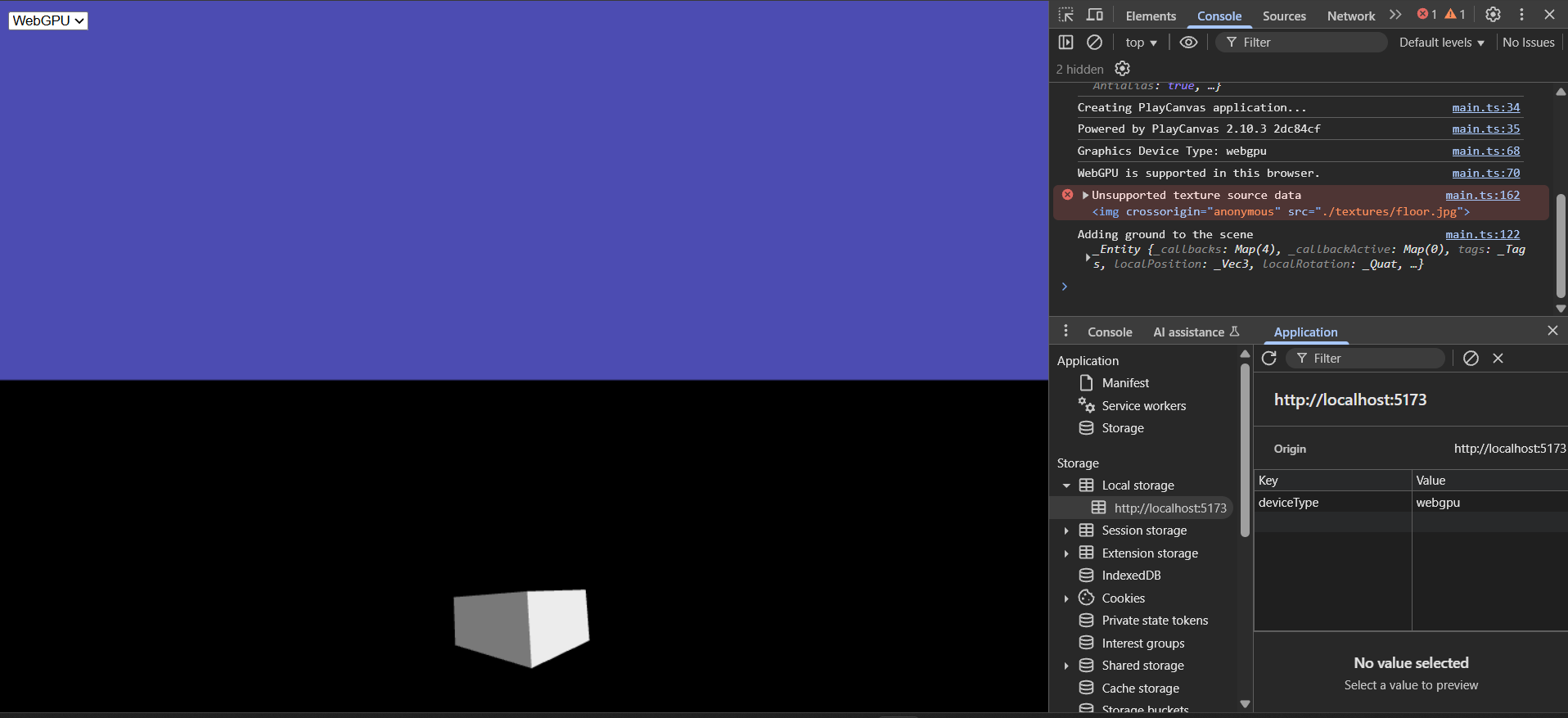

where as what is happening when switched to Web GPU:
for quick overview here is my main.ts:
import * as pc from "playcanvas";
// create an application
const canvas = document.getElementById("application") as HTMLCanvasElement;
const deviceSelect = document.getElementById("device-select") as HTMLSelectElement;
// Device type mapping
const deviceTypeMap: Record<string, string> = {
webgl2: pc.DEVICETYPE_WEBGL2,
webgpu: pc.DEVICETYPE_WEBGPU,
};
// Load preference from localStorage or default to WebGL2
const storedType = localStorage.getItem("deviceType") || pc.DEVICETYPE_WEBGL2;
deviceSelect.value = storedType;
// Listen for changes and reload page with new preference
deviceSelect.addEventListener("change", () => {
localStorage.setItem("deviceType", deviceSelect.value);
window.location.reload();
});
// Use selected device type for initialization
const gfxOptions = {
deviceTypes: [deviceTypeMap[deviceSelect.value]],
antialias: true,
};
const device = await pc.createGraphicsDevice(canvas, gfxOptions);
console.log("Graphics Device:", device);
console.log("Creating PlayCanvas application...");
const app = new pc.Application(canvas, {
graphicsDevice: device,
});
app.setCanvasResolution(pc.RESOLUTION_AUTO);
app.setCanvasFillMode(pc.FILLMODE_FILL_WINDOW);
app.start();
// create a camera
const camera = new pc.Entity();
camera.addComponent("camera", {
clearColor: new pc.Color(0.3, 0.3, 0.7),
});
camera.setPosition(0, 3, 9);
app.root.addChild(camera);
// create a light
const light = new pc.Entity();
light.addComponent("light");
light.setEulerAngles(45, 45, 0);
app.root.addChild(light);
// create a box
const box = new pc.Entity();
box.addComponent("model", {
type: "box",
});
app.root.addChild(box);
// rotate the box
app.on("update", (dt: number) => box.rotate(10 * dt, 20 * dt, 30 * dt));
// log the graphics device type and WebGPU support
console.log("Graphics Device Type:", app.graphicsDevice.deviceType);
if ("gpu" in navigator) {
console.log("WebGPU is supported in this browser.");
} else {
console.log("WebGPU is NOT supported in this browser.");
}
// Load a texture
const texturePath: string = "./textures/floor.jpg";
const material = new pc.StandardMaterial();
const name = "material_" + material.id;
const cacheKey = `material:${name}`;
// Set material properties
material.name = name;
material.diffuseMap = await loadTexture(app, texturePath);
material.update();
// var asset = new pc.Asset("floor", "texture", {
// url: texturePath,
// });
// app.assets.add(asset);
// asset.ready(
// function () {
// console.log("texture ready: ",this.app.assets.find("floor"));
// }.bind(this)
// );
// app.assets.load(asset);
// Ground
const ground = new pc.Entity("floor");
ground.addComponent("render", {
type: "plane",
material: material,
});
ground.setLocalScale(new pc.Vec3(200, 1, 200));
ground.addComponent("collision", {
type: "box",
halfExtents: new pc.Vec3(200, 0.1, 200),
});
ground.addComponent("rigidbody", {
type: "static",
});
ground.setPosition(new pc.Vec3(0, 0, 0))
console.log("Adding ground to the scene", ground);
app.root.addChild(ground);
/**
* Load a texture from URL with caching
* @param app - PlayCanvas application instance
* @param url - URL of texture to load
* @param options - Texture options
* @returns Promise resolving to the loaded texture
*/
export async function loadTexture(
app: pc.Application,
url: string,
options: {
name?: string;
mipmaps?: boolean;
anisotropy?: number;
filtering?: boolean;
} = {}
): Promise<pc.Texture> {
// Set default name from URL if not provided
const name = options.name || url.split("/").pop() || "texture";
// Create a promise to load the texture
return new Promise((resolve, reject) => {
const texture = new pc.Texture(app.graphicsDevice, {
mipmaps: options.mipmaps !== undefined ? options.mipmaps : true,
anisotropy: options.anisotropy || 1,
magFilter: options.filtering ? pc.FILTER_LINEAR : pc.FILTER_NEAREST,
minFilter: options.filtering
? pc.FILTER_LINEAR_MIPMAP_LINEAR
: pc.FILTER_NEAREST,
addressU: pc.ADDRESS_CLAMP_TO_EDGE,
addressV: pc.ADDRESS_CLAMP_TO_EDGE
});
const img = new Image();
img.crossOrigin = "anonymous";
img.onload = () => {
texture.setSource(img);
resolve(texture);
};
img.onerror = () => {
reject(new Error(`Failed to load texture: ${url}`));
};
img.src = url;
});
}
Supported external sources:
Not supported directly: raw
