Terrain Component for Editor

Showcase
30
  • The caves can only be made as a separate model, I’m already working on the cuts of the pieces.

You can look at this solution for godot, but do not forget that js works very poorly with numbers, so such algorithms are not very suitable for pure js.

GitHub - Zylann/godot_voxel: Voxel module for Godot Engine.

31

That link you sent me seems either incredibly broken or outdated. Of the 19 projects, only a single one functions.

32

Hello everyone, I am opening public access to the beta terrain system for our engine. I hope someone will be interested in working on it together.

4 Likes
33
  1. Add compressed algoritm for height map.
  2. Add instancing accelerator.
  3. Improved height editing performance.


1 Like
34
  • Added the ability to save and import a height map from a file. In the future, I plan to use zip to save space.
  • Add build version on github
  • Add open project: PlayCanvas | HTML5 Game Engine.

image1919×835 64 KB

3 Likes
35
  1. Added grass support.
  2. Added a brush for drawing grass, with the ability to fill in color.
  • Work is underway on the road editor.

2 Likes
36

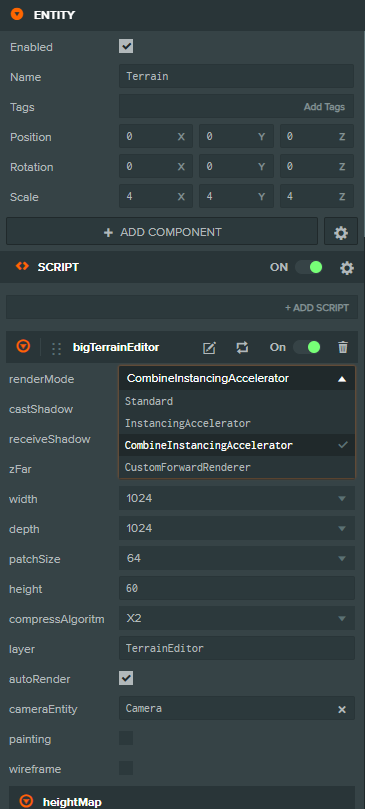

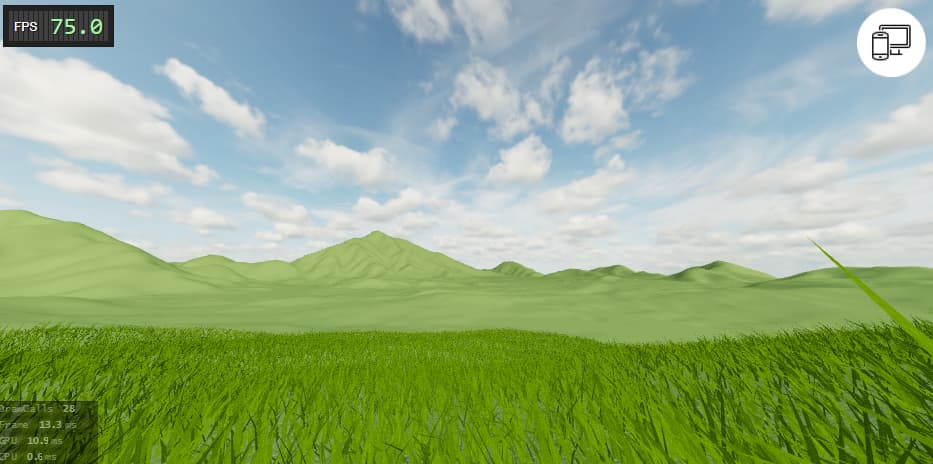

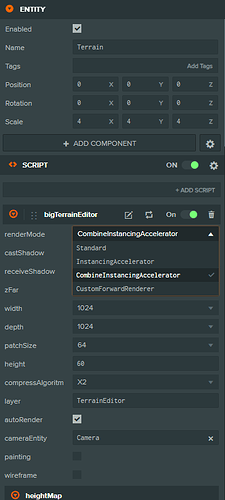

image1318×942 178 KB

image1319×947 83.6 KB

image293×678 17.2 KB

  1. The grass algorithm has been improved, now the entire field is rendered in just 1 draw.
  2. The brush supports up to 8 color and texture options.
  3. Full compatibility between WebGl2 and WebGPU.
3 Likes
37
  • Add new method of rendering a model has been developed, at the moment it is experimental.

image1658×844 116 KB

1 Like
38

Awesome work my man!

I started working on something similar myself years ago, but you’ve gotten a lot farther than I ever did. I got demotivated by the fact there’s no actual public “asset store” in PC as there is in Unity.

So are you gonna make it free or paid, when can we expect this component out in the public?

This will definitely add a lot of value to PlayCanvas

2 Likes
39

I don’t have enough time to bring it to something working in the editor itself, at the moment I’m looking for like-minded people in developing this, it’s too early to talk about openness or financial benefits.

1 Like
40

Add Ammo integration:

  • update heightdata runtime.
  • use 1 buffer is used between Ammo, JS and GPU loader.

.

4 Likes
41

Wow so cool

42

At the moment, support for the V2 engine will only be for the current version, earlier versions of the V2 engine will not be supported, this is due to the update of the shader chunks.

V1 support is still supported from version 1.71

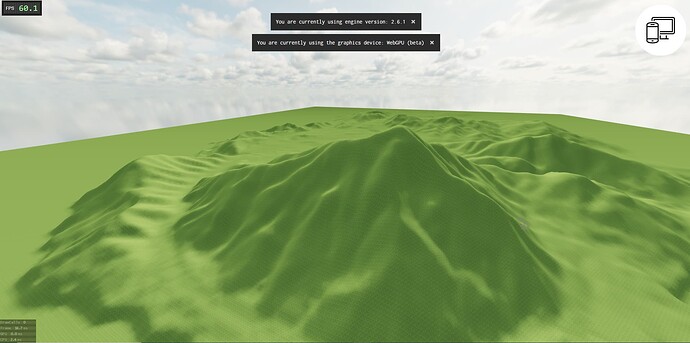

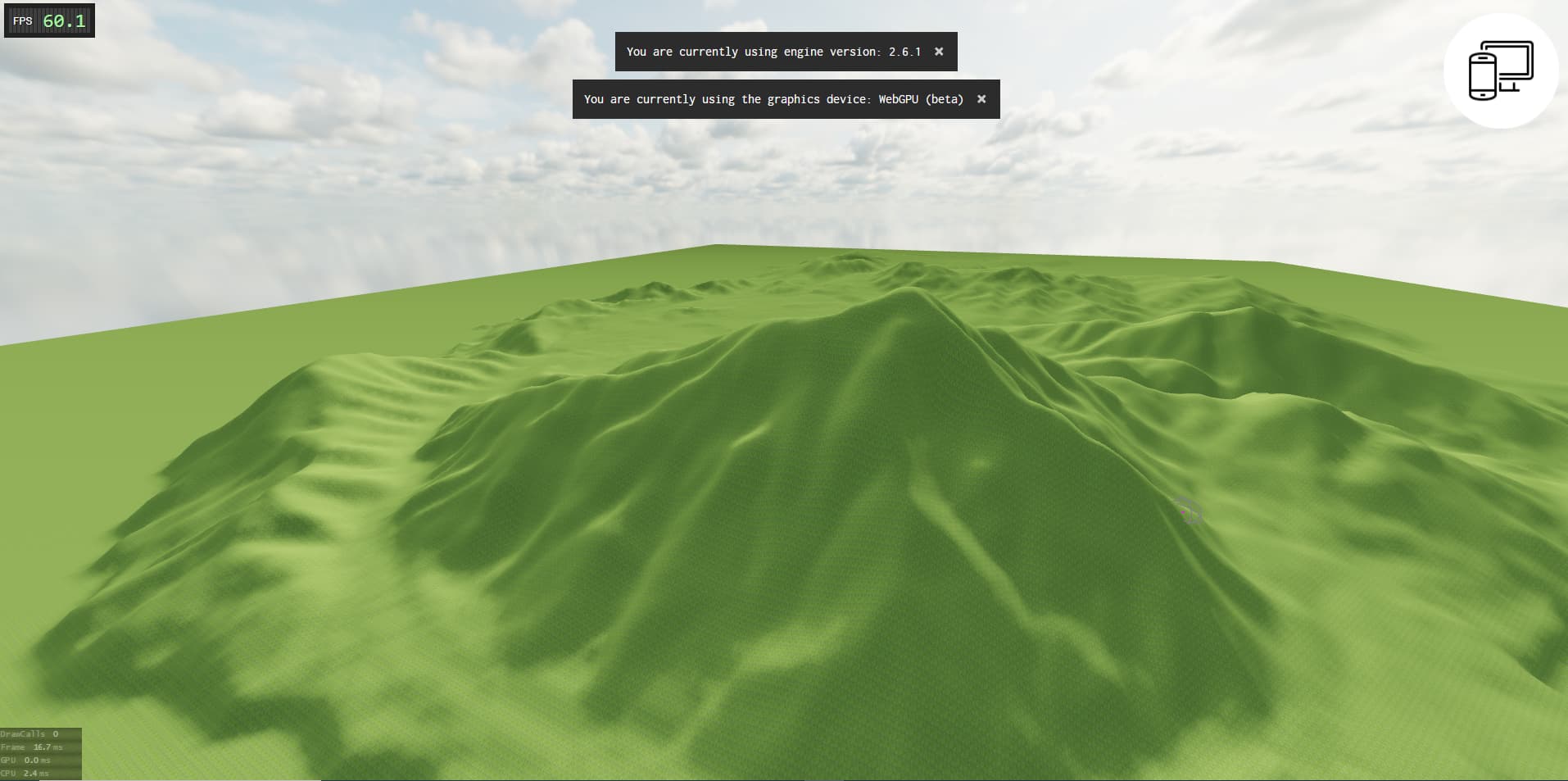

image1914×953 90.8 KB

    if (engineVersion === 'v2') {

        const normalCoreVS = chunksStore.normalByHeightMapVS + normalCoreVS_V2;
        const transformHeaderVS = transformHeaderVS_V2.replace('%%HEIGHT_MAP_SAMPLER%%', getSamplerType(heightMapFormat));
        const transformVS = definesVS
            + (instancing ? chunksStore.baseForInstancingVS : chunksStore.baseOriginalVS)
            + transformHeaderVS
            + (instancing ? chunksStore.currentTerrainXZForInstancingChunkVS : chunksStore.currentTerrainXZChunkVS)
            + terrainHeightFactorVS
            + chunksStore.terrainCoordsChunkVS
            + chunksStore.terrainChunkBufferCoordVS
            + chunksStore.terrainHeightFactorChunkVS
            + chunksStore.terrainHeightChunkVS
            + transformVS_V2;

        return {

            // Vertex
            normalCoreVS,
            transformVS,
            transformCoreVS: "",
            transformInstancing: "",

            // Fragment
            diffusePS: chunksStore.diffusePS,
        };
    }
2 Likes
43

Improved instance accelerator, now 30% fewer drawcalls are required to render the landscape.

The average call rate dropped from 50 to 34.

image933×464 43.3 KB

image365×809 23.3 KB

@see TerrainPatchesCombineInstancing.mts file

5 Likes
44

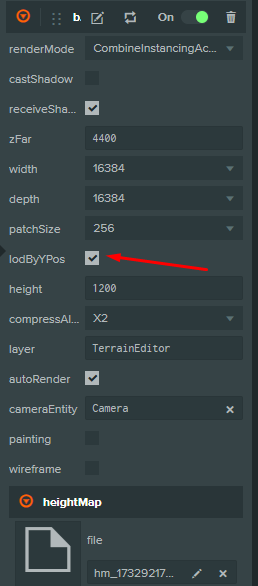

image258×586 11.8 KB

A new parameter has been introduced that allows you to take into account the Y position of the patch to form the lod grid. Previously, this was the default, now you can only take into account the xz distance to the patch.

3 Likes
45

  1. To optimize calculations, the minHeight property of the height map was removed. (Most often it was equal to 0)

  2. Fixed frustum desynchronization between frames, see Fly Camera script (FlyCamera.mts). Which caused patch display delay when some patches were displayed on the next frame.

...
        // Update the camera's TRS
        this.entity.setLocalEulerAngles(this.ex, this.ey, 0);
        this.entity.translateLocal(this.translateLoc);
        this.translateLoc.set(0, 0, 0);

        // Update frustum by actual matrix
        this.app.renderer.updateCameraFrustum(this.entity.camera?.camera);
...

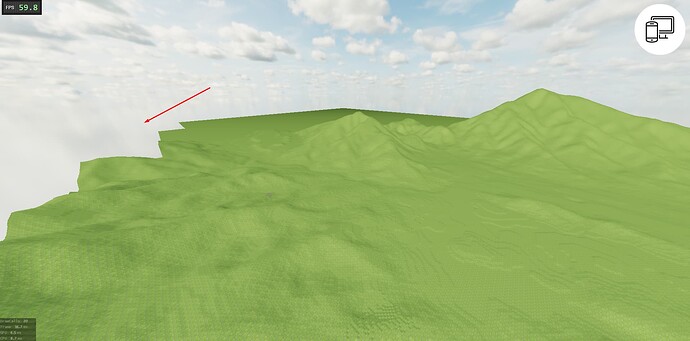

image1916×949 81.3 KB

1 Like
46

Hi, does this make use of Ammo.btheightfieldterrainshape ? I searched the repo for btheight and did not find any obvious reference/linking to this.

47

Hi, I wrote my own type for ammo, initially I used Ammo.btheightfieldterrainshape, but since I use various optimizations for storing in the buffer, I had to make my own type.

I’m not ready to release this change to the public at this time.

48

Due to frequent changes in the engine’s shader base, the integration work into version 2.0 has been temporarily postponed. We need to wait for more stable updates to ensure proper and reliable integration.

1 Like
49

Open beta test for Ammo integration:
