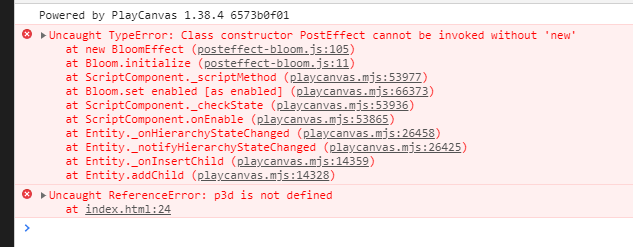

[SOLVED] Class constructor PostEffect cannot be invoked without 'new'

I am trying to integrate the posteffect scripts from playcanvas.github.io into an engine-only project (which uses ES6), and I have encountered some troubles. When I use Object.assign() to extend the pc module, I can print the pc to the console and see the extended function, but an error was reported when they were actually called:



Code here:

import * as pc from 'playcanvas';

export default class Blend extends pc.ScriptType{

    initialize() {
        this.effect = new pc.BlendEffect(this.app.graphicsDevice);
        this.effect.mixRatio = this.mixRatio;
        this.effect.blendMap = this.blendMap.resource;

        var queue = this.entity.camera.postEffects;

        queue.addEffect(this.effect);

        this.on('state', function (enabled) {
            if (enabled) {
                queue.addEffect(this.effect);
            } else {
                queue.removeEffect(this.effect);
            }
        });

        this.on('destroy', function () {
            queue.removeEffect(this.effect);
        });

        this.on('attr:mixRatio', function (value) {
            this.effect.mixRatio = value;
        }, this);

        this.on('attr:blendMap', function (value) {
            this.effect.blendMap = value ? value.resource : null;
        }, this);
    }

}

pc.registerScript(Blend,'blend');

Blend.attributes.add('mixRatio', {
    type: 'number',
    default: 1,
    min: 0,
    max: 1,
    precision: 5,
    title: 'Mix Ratio'
});

Blend.attributes.add('blendMap', {
    type: 'asset',
    assetType: 'texture',
    title: 'Blend Map'
});

Object.assign(pc, function () {

    /**
     * @class
     * @name pc.BlendEffect
     * @classdesc Blends the input render target with another texture.
     * @description Creates new instance of the post effect.
     * @augments pc.PostEffect
     * @param {pc.GraphicsDevice} graphicsDevice - The graphics device of the application.
     * @property {pc.Texture} blendMap The texture with which to blend the input render target with.
     * @property {number} mixRatio The amount of blending between the input and the blendMap. Ranges from 0 to 1.
     */
    var BlendEffect = function (graphicsDevice) {
        pc.PostEffect.call(this, graphicsDevice);

        this.shader = new pc.Shader(graphicsDevice, {
            attributes: {
                aPosition: pc.SEMANTIC_POSITION
            },
            vshader: [
                "attribute vec2 aPosition;",
                "",
                "varying vec2 vUv0;",
                "",
                "void main(void)",
                "{",
                "    gl_Position = vec4(aPosition, 0.0, 1.0);",
                "    vUv0 = (aPosition.xy + 1.0) * 0.5;",
                "}"
            ].join("\n"),
            fshader: [
                "precision " + graphicsDevice.precision + " float;",
                "",
                "uniform float uMixRatio;",
                "uniform sampler2D uColorBuffer;",
                "uniform sampler2D uBlendMap;",
                "",
                "varying vec2 vUv0;",
                "",
                "void main(void)",
                "{",
                "    vec4 texel1 = texture2D(uColorBuffer, vUv0);",
                "    vec4 texel2 = texture2D(uBlendMap, vUv0);",
                "    gl_FragColor = mix(texel1, texel2, uMixRatio);",
                "}"
            ].join("\n")
        });

        // Uniforms
        this.mixRatio = 0.5;
        this.blendMap = new pc.Texture(graphicsDevice);
        this.blendMap.name = 'pe-blend';
    };

    BlendEffect.prototype = Object.create(pc.PostEffect.prototype);
    BlendEffect.prototype.constructor = BlendEffect;

    Object.assign(BlendEffect.prototype, {
        render: function (inputTarget, outputTarget, rect) {
            var device = this.device;
            var scope = device.scope;

            scope.resolve("uMixRatio").setValue(this.mixRatio);
            scope.resolve("uColorBuffer").setValue(inputTarget.colorBuffer);
            scope.resolve("uBlendMap").setValue(this.blendMap);
            pc.drawFullscreenQuad(device, outputTarget, this.vertexBuffer, this.shader, rect);
        }
    });

    return {
        BlendEffect: BlendEffect
    };
}());
import * as pc from 'playcanvas';

export default class Bloom extends pc.ScriptType{

    initialize() {
        this.effect = new pc.BloomEffect(this.app.graphicsDevice);

        this.effect.bloomThreshold = this.bloomThreshold;
        this.effect.blurAmount = this.blurAmount;
        this.effect.bloomIntensity = this.bloomIntensity;

        var queue = this.entity.camera.postEffects;

        queue.addEffect(this.effect);

        this.on('attr', function (name, value) {
            this.effect[name] = value;
        }, this);

        this.on('state', function (enabled) {
            if (enabled) {
                queue.addEffect(this.effect);
            } else {
                queue.removeEffect(this.effect);
            }
        });

        this.on('destroy', function () {
            queue.removeEffect(this.effect);
        });
    }

}

// --------------- POST EFFECT DEFINITION --------------- //
Object.assign(pc, function () {
    var SAMPLE_COUNT = 15;

    function computeGaussian(n, theta) {
        return ((1.0 / Math.sqrt(2 * Math.PI * theta)) * Math.exp(-(n * n) / (2 * theta * theta)));
    }

    function calculateBlurValues(sampleWeights, sampleOffsets, dx, dy, blurAmount) {
        // Look up how many samples our gaussian blur effect supports.

        // Create temporary arrays for computing our filter settings.
        // The first sample always has a zero offset.
        sampleWeights[0] = computeGaussian(0, blurAmount);
        sampleOffsets[0] = 0;
        sampleOffsets[1] = 0;

        // Maintain a sum of all the weighting values.
        var totalWeights = sampleWeights[0];

        // Add pairs of additional sample taps, positioned
        // along a line in both directions from the center.
        var i, len;
        for (i = 0, len = Math.floor(SAMPLE_COUNT / 2); i < len; i++) {
            // Store weights for the positive and negative taps.
            var weight = computeGaussian(i + 1, blurAmount);
            sampleWeights[i * 2] = weight;
            sampleWeights[i * 2 + 1] = weight;
            totalWeights += weight * 2;

            // To get the maximum amount of blurring from a limited number of
            // pixel shader samples, we take advantage of the bilinear filtering
            // hardware inside the texture fetch unit. If we position our texture
            // coordinates exactly halfway between two texels, the filtering unit
            // will average them for us, giving two samples for the price of one.
            // This allows us to step in units of two texels per sample, rather
            // than just one at a time. The 1.5 offset kicks things off by
            // positioning us nicely in between two texels.
            var sampleOffset = i * 2 + 1.5;

            // Store texture coordinate offsets for the positive and negative taps.
            sampleOffsets[i * 4] = dx * sampleOffset;
            sampleOffsets[i * 4 + 1] = dy * sampleOffset;
            sampleOffsets[i * 4 + 2] = -dx * sampleOffset;
            sampleOffsets[i * 4 + 3] = -dy * sampleOffset;
        }

        // Normalize the list of sample weightings, so they will always sum to one.
        for (i = 0, len = sampleWeights.length; i < len; i++) {
            sampleWeights[i] /= totalWeights;
        }
    }

    /**
     * @class
     * @name pc.BloomEffect
     * @classdesc Implements the BloomEffect post processing effect.
     * @description Creates new instance of the post effect.
     * @augments pc.PostEffect
     * @param {pc.GraphicsDevice} graphicsDevice - The graphics device of the application.
     * @property {number} bloomThreshold Only pixels brighter then this threshold will be processed. Ranges from 0 to 1.
     * @property {number} blurAmount Controls the amount of blurring.
     * @property {number} bloomIntensity The intensity of the effect.
     */
    var BloomEffect = function (graphicsDevice) {
        pc.PostEffect.call(this, graphicsDevice);

        // Shaders
        var attributes = {
            aPosition: pc.SEMANTIC_POSITION
        };

        var passThroughVert = [
            "attribute vec2 aPosition;",
            "",
            "varying vec2 vUv0;",
            "",
            "void main(void)",
            "{",
            "    gl_Position = vec4(aPosition, 0.0, 1.0);",
            "    vUv0 = (aPosition + 1.0) * 0.5;",
            "}"
        ].join("\n");

        // Pixel shader extracts the brighter areas of an image.
        // This is the first step in applying a bloom postprocess.
        var bloomExtractFrag = [
            "precision " + graphicsDevice.precision + " float;",
            "",
            "varying vec2 vUv0;",
            "",
            "uniform sampler2D uBaseTexture;",
            "uniform float uBloomThreshold;",
            "",
            "void main(void)",
            "{",
                 // Look up the original image color.
            "    vec4 color = texture2D(uBaseTexture, vUv0);",
            "",
                 // Adjust it to keep only values brighter than the specified threshold.
            "    gl_FragColor = clamp((color - uBloomThreshold) / (1.0 - uBloomThreshold), 0.0, 1.0);",
            "}"
        ].join("\n");

        // Pixel shader applies a one dimensional gaussian blur filter.
        // This is used twice by the bloom postprocess, first to
        // blur horizontally, and then again to blur vertically.
        var gaussianBlurFrag = [
            "precision " + graphicsDevice.precision + " float;",
            "",
            "#define SAMPLE_COUNT " + SAMPLE_COUNT,
            "",
            "varying vec2 vUv0;",
            "",
            "uniform sampler2D uBloomTexture;",
            "uniform vec2 uBlurOffsets[SAMPLE_COUNT];",
            "uniform float uBlurWeights[SAMPLE_COUNT];",
            "",
            "void main(void)",
            "{",
            "    vec4 color = vec4(0.0);",
                 // Combine a number of weighted image filter taps.
            "    for (int i = 0; i < SAMPLE_COUNT; i++)",
            "    {",
            "        color += texture2D(uBloomTexture, vUv0 + uBlurOffsets[i]) * uBlurWeights[i];",
            "    }",
            "",
            "    gl_FragColor = color;",
            "}"
        ].join("\n");

        // Pixel shader combines the bloom image with the original
        // scene, using tweakable intensity levels.
        // This is the final step in applying a bloom postprocess.
        var bloomCombineFrag = [
            "precision " + graphicsDevice.precision + " float;",
            "",
            "varying vec2 vUv0;",
            "",
            "uniform float uBloomEffectIntensity;",
            "uniform sampler2D uBaseTexture;",
            "uniform sampler2D uBloomTexture;",
            "",
            "void main(void)",
            "{",
                 // Look up the bloom and original base image colors.
            "    vec4 bloom = texture2D(uBloomTexture, vUv0) * uBloomEffectIntensity;",
            "    vec4 base = texture2D(uBaseTexture, vUv0);",
            "",
                 // Darken down the base image in areas where there is a lot of bloom,
                 // to prevent things looking excessively burned-out.
            "    base *= (1.0 - clamp(bloom, 0.0, 1.0));",
            "",
                 // Combine the two images.
            "    gl_FragColor = base + bloom;",
            "}"
        ].join("\n");

        this.extractShader = new pc.Shader(graphicsDevice, {
            attributes: attributes,
            vshader: passThroughVert,
            fshader: bloomExtractFrag
        });
        this.blurShader = new pc.Shader(graphicsDevice, {
            attributes: attributes,
            vshader: passThroughVert,
            fshader: gaussianBlurFrag
        });
        this.combineShader = new pc.Shader(graphicsDevice, {
            attributes: attributes,
            vshader: passThroughVert,
            fshader: bloomCombineFrag
        });

        // Render targets
        var width = graphicsDevice.width;
        var height = graphicsDevice.height;
        this.targets = [];
        for (var i = 0; i < 2; i++) {
            var colorBuffer = new pc.Texture(graphicsDevice, {
                format: pc.PIXELFORMAT_R8_G8_B8_A8,
                width: width >> 1,
                height: height >> 1
            });
            colorBuffer.minFilter = pc.FILTER_LINEAR;
            colorBuffer.magFilter = pc.FILTER_LINEAR;
            colorBuffer.addressU = pc.ADDRESS_CLAMP_TO_EDGE;
            colorBuffer.addressV = pc.ADDRESS_CLAMP_TO_EDGE;
            colorBuffer.name = 'pe-bloom';
            var target = new pc.RenderTarget(graphicsDevice, colorBuffer, { depth: false });

            this.targets.push(target);
        }

        // Effect defaults
        this.bloomThreshold = 0.25;
        this.blurAmount = 4;
        this.bloomIntensity = 1.25;

        // Uniforms
        this.sampleWeights = new Float32Array(SAMPLE_COUNT);
        this.sampleOffsets = new Float32Array(SAMPLE_COUNT * 2);
    };

    BloomEffect.prototype = Object.create(pc.PostEffect.prototype);
    BloomEffect.prototype.constructor = BloomEffect;

    Object.assign(BloomEffect.prototype, {
        render: function (inputTarget, outputTarget, rect) {
            var device = this.device;
            var scope = device.scope;

            // Pass 1: draw the scene into rendertarget 1, using a
            // shader that extracts only the brightest parts of the image.
            scope.resolve("uBloomThreshold").setValue(this.bloomThreshold);
            scope.resolve("uBaseTexture").setValue(inputTarget.colorBuffer);
            pc.drawFullscreenQuad(device, this.targets[0], this.vertexBuffer, this.extractShader);

            // Pass 2: draw from rendertarget 1 into rendertarget 2,
            // using a shader to apply a horizontal gaussian blur filter.
            calculateBlurValues(this.sampleWeights, this.sampleOffsets, 1.0 / this.targets[1].width, 0, this.blurAmount);
            scope.resolve("uBlurWeights[0]").setValue(this.sampleWeights);
            scope.resolve("uBlurOffsets[0]").setValue(this.sampleOffsets);
            scope.resolve("uBloomTexture").setValue(this.targets[0].colorBuffer);
            pc.drawFullscreenQuad(device, this.targets[1], this.vertexBuffer, this.blurShader);

            // Pass 3: draw from rendertarget 2 back into rendertarget 1,
            // using a shader to apply a vertical gaussian blur filter.
            calculateBlurValues(this.sampleWeights, this.sampleOffsets, 0, 1.0 / this.targets[0].height, this.blurAmount);
            scope.resolve("uBlurWeights[0]").setValue(this.sampleWeights);
            scope.resolve("uBlurOffsets[0]").setValue(this.sampleOffsets);
            scope.resolve("uBloomTexture").setValue(this.targets[1].colorBuffer);
            pc.drawFullscreenQuad(device, this.targets[0], this.vertexBuffer, this.blurShader);

            // Pass 4: draw both rendertarget 1 and the original scene
            // image back into the main backbuffer, using a shader that
            // combines them to produce the final bloomed result.
            scope.resolve("uBloomEffectIntensity").setValue(this.bloomIntensity);
            scope.resolve("uBloomTexture").setValue(this.targets[0].colorBuffer);
            scope.resolve("uBaseTexture").setValue(inputTarget.colorBuffer);
            pc.drawFullscreenQuad(device, outputTarget, this.vertexBuffer, this.combineShader, rect);
        }
    });

    return {
        BloomEffect: BloomEffect
    };
}());

// ----------------- SCRIPT DEFINITION ------------------ //
pc.registerScript(Bloom,'bloom');

Bloom.attributes.add('bloomIntensity', {
    type: 'number',
    default: 1,
    min: 0,
    title: 'Intensity'
});

Bloom.attributes.add('bloomThreshold', {
    type: 'number',
    default: 0.25,
    min: 0,
    max: 1,
    precision: 2,
    title: 'Threshold'
});

Bloom.attributes.add('blurAmount', {
    type: 'number',
    default: 4,
    min: 1,
    'title': 'Blur amount'
});

@will Something for you?

Any ideas?@Will

Yeah, if you’re going to use the post effect scripts with the module version of the engine, then you’ll need to migrate them to ES6 class format.

By the way, it looks like you have old versions of the scripts. They are no longer written into the pc namespace:

Let’s take the luminosity effect, for example:

import * as pc from "playcanvas";

// --------------- POST EFFECT DEFINITION --------------- //
/**
 * @class
 * @name LuminosityEffect
 * @classdesc Outputs the luminosity of the input render target.
 * @description Creates new instance of the post effect.
 * @augments PostEffect
 * @param {GraphicsDevice} graphicsDevice - The graphics device of the application.
 */
class LuminosityEffect extends pc.PostEffect {
    constructor(graphicsDevice) {
        super(graphicsDevice);

        this.shader = new pc.Shader(graphicsDevice, {
            attributes: {
                aPosition: pc.SEMANTIC_POSITION
            },
            vshader: [
                "attribute vec2 aPosition;",
                "",
                "varying vec2 vUv0;",
                "",
                "void main(void)",
                "{",
                "    gl_Position = vec4(aPosition, 0.0, 1.0);",
                "    vUv0 = (aPosition.xy + 1.0) * 0.5;",
                "}"
            ].join("\n"),
            fshader: [
                "precision " + graphicsDevice.precision + " float;",
                "",
                "uniform sampler2D uColorBuffer;",
                "",
                "varying vec2 vUv0;",
                "",
                "void main() {",
                "    vec4 texel = texture2D(uColorBuffer, vUv0);",
                "    vec3 luma = vec3(0.299, 0.587, 0.114);",
                "    float v = dot(texel.xyz, luma);",
                "    gl_FragColor = vec4(v, v, v, texel.w);",
                "}"
            ].join("\n")
        });
    }

    render(inputTarget, outputTarget, rect) {
        var device = this.device;
        var scope = device.scope;

        scope.resolve("uColorBuffer").setValue(inputTarget.colorBuffer);
        pc.drawFullscreenQuad(device, outputTarget, this.vertexBuffer, this.shader, rect);
    }
}

// ----------------- SCRIPT DEFINITION ------------------ //
var Luminosity = pc.createScript('luminosity');

// initialize code called once per entity
Luminosity.prototype.initialize = function () {
    this.effect = new LuminosityEffect(this.app.graphicsDevice);

    var queue = this.entity.camera.postEffects;
    queue.addEffect(this.effect);

    this.on('state', function (enabled) {
        if (enabled) {
            queue.addEffect(this.effect);
        } else {
            queue.removeEffect(this.effect);
        }
    });

    this.on('destroy', function () {
        queue.removeEffect(this.effect);
    });
};

I think we should probably port all external scripts to this module format now so they can be used in both ES6 and ES5 projects.

3 Likes

Thank you for your advice, very helpful :heart:.

Made a little modification on this basis and the test passed.

import * as pc from "playcanvas";

// --------------- POST EFFECT DEFINITION --------------- //
/**
 * @class
 * @name LuminosityEffect
 * @classdesc Outputs the luminosity of the input render target.
 * @description Creates new instance of the post effect.
 * @augments PostEffect
 * @param {GraphicsDevice} graphicsDevice - The graphics device of the application.
 */

class LuminosityEffect extends pc.PostEffect {
    constructor(graphicsDevice) {
        super(graphicsDevice);

        this.shader = new pc.Shader(graphicsDevice, {
            attributes: {
                aPosition: pc.SEMANTIC_POSITION
            },
            vshader: [
                "attribute vec2 aPosition;",
                "",
                "varying vec2 vUv0;",
                "",
                "void main(void)",
                "{",
                "    gl_Position = vec4(aPosition, 0.0, 1.0);",
                "    vUv0 = (aPosition.xy + 1.0) * 0.5;",
                "}"
            ].join("\n"),
            fshader: [
                "precision " + graphicsDevice.precision + " float;",
                "",
                "uniform sampler2D uColorBuffer;",
                "",
                "varying vec2 vUv0;",
                "",
                "void main() {",
                "    vec4 texel = texture2D(uColorBuffer, vUv0);",
                "    vec3 luma = vec3(0.299, 0.587, 0.114);",
                "    float v = dot(texel.xyz, luma);",
                "    gl_FragColor = vec4(v, v, v, texel.w);",
                "}"
            ].join("\n")
        });
    }

    render(inputTarget, outputTarget, rect) {
        var device = this.device;
        var scope = device.scope;

        scope.resolve("uColorBuffer").setValue(inputTarget.colorBuffer);
        pc.drawFullscreenQuad(device, outputTarget, this.vertexBuffer, this.shader, rect);
    }
}

export default class Luminosity extends pc.ScriptType{
    initialize() {
        this.effect = new LuminosityEffect(this.app.graphicsDevice);

        var queue = this.entity.camera.postEffects;
        queue.addEffect(this.effect);

        this.on('state', function (enabled) {
            if (enabled) {
                queue.addEffect(this.effect);
            } else {
                queue.removeEffect(this.effect);
            }
        });

        this.on('destroy', function () {
            queue.removeEffect(this.effect);
        });
    }
};

// ----------------- SCRIPT DEFINITION ------------------ //
pc.registerScript(Luminosity,'luminosity');

When calling:

import Luminosity from './scripts/posteffects/posteffect-luminosity'

// define app, camera, etc. here.
......

camera.script.create('luminosity');
1 Like

Bloom effect tested:

import * as pc from "playcanvas";

// --------------- POST EFFECT DEFINITION --------------- //
var SAMPLE_COUNT = 15;

function computeGaussian(n, theta) {
    return ((1.0 / Math.sqrt(2 * Math.PI * theta)) * Math.exp(-(n * n) / (2 * theta * theta)));
}

function calculateBlurValues(sampleWeights, sampleOffsets, dx, dy, blurAmount) {
    // Look up how many samples our gaussian blur effect supports.

    // Create temporary arrays for computing our filter settings.
    // The first sample always has a zero offset.
    sampleWeights[0] = computeGaussian(0, blurAmount);
    sampleOffsets[0] = 0;
    sampleOffsets[1] = 0;

    // Maintain a sum of all the weighting values.
    var totalWeights = sampleWeights[0];

    // Add pairs of additional sample taps, positioned
    // along a line in both directions from the center.
    var i, len;
    for (i = 0, len = Math.floor(SAMPLE_COUNT / 2); i < len; i++) {
        // Store weights for the positive and negative taps.
        var weight = computeGaussian(i + 1, blurAmount);
        sampleWeights[i * 2] = weight;
        sampleWeights[i * 2 + 1] = weight;
        totalWeights += weight * 2;

        // To get the maximum amount of blurring from a limited number of
        // pixel shader samples, we take advantage of the bilinear filtering
        // hardware inside the texture fetch unit. If we position our texture
        // coordinates exactly halfway between two texels, the filtering unit
        // will average them for us, giving two samples for the price of one.
        // This allows us to step in units of two texels per sample, rather
        // than just one at a time. The 1.5 offset kicks things off by
        // positioning us nicely in between two texels.
        var sampleOffset = i * 2 + 1.5;

        // Store texture coordinate offsets for the positive and negative taps.
        sampleOffsets[i * 4] = dx * sampleOffset;
        sampleOffsets[i * 4 + 1] = dy * sampleOffset;
        sampleOffsets[i * 4 + 2] = -dx * sampleOffset;
        sampleOffsets[i * 4 + 3] = -dy * sampleOffset;
    }

    // Normalize the list of sample weightings, so they will always sum to one.
    for (i = 0, len = sampleWeights.length; i < len; i++) {
        sampleWeights[i] /= totalWeights;
    }
}

/**
 * @class
 * @name BloomEffect
 * @classdesc Implements the BloomEffect post processing effect.
 * @description Creates new instance of the post effect.
 * @augments PostEffect
 * @param {GraphicsDevice} graphicsDevice - The graphics device of the application.
 * @property {number} bloomThreshold Only pixels brighter then this threshold will be processed. Ranges from 0 to 1.
 * @property {number} blurAmount Controls the amount of blurring.
 * @property {number} bloomIntensity The intensity of the effect.
 */

class BloomEffect extends pc.PostEffect {
    constructor(graphicsDevice) {
        super(graphicsDevice);

        // Shaders
        var attributes = {
            aPosition: pc.SEMANTIC_POSITION
        };

        var passThroughVert = [
            "attribute vec2 aPosition;",
            "",
            "varying vec2 vUv0;",
            "",
            "void main(void)",
            "{",
            "    gl_Position = vec4(aPosition, 0.0, 1.0);",
            "    vUv0 = (aPosition + 1.0) * 0.5;",
            "}"
        ].join("\n");

        // Pixel shader extracts the brighter areas of an image.
        // This is the first step in applying a bloom postprocess.
        var bloomExtractFrag = [
            "precision " + graphicsDevice.precision + " float;",
            "",
            "varying vec2 vUv0;",
            "",
            "uniform sampler2D uBaseTexture;",
            "uniform float uBloomThreshold;",
            "",
            "void main(void)",
            "{",
                 // Look up the original image color.
            "    vec4 color = texture2D(uBaseTexture, vUv0);",
            "",
                 // Adjust it to keep only values brighter than the specified threshold.
            "    gl_FragColor = clamp((color - uBloomThreshold) / (1.0 - uBloomThreshold), 0.0, 1.0);",
            "}"
        ].join("\n");

        // Pixel shader applies a one dimensional gaussian blur filter.
        // This is used twice by the bloom postprocess, first to
        // blur horizontally, and then again to blur vertically.
        var gaussianBlurFrag = [
            "precision " + graphicsDevice.precision + " float;",
            "",
            "#define SAMPLE_COUNT " + SAMPLE_COUNT,
            "",
            "varying vec2 vUv0;",
            "",
            "uniform sampler2D uBloomTexture;",
            "uniform vec2 uBlurOffsets[SAMPLE_COUNT];",
            "uniform float uBlurWeights[SAMPLE_COUNT];",
            "",
            "void main(void)",
            "{",
            "    vec4 color = vec4(0.0);",
                 // Combine a number of weighted image filter taps.
            "    for (int i = 0; i < SAMPLE_COUNT; i++)",
            "    {",
            "        color += texture2D(uBloomTexture, vUv0 + uBlurOffsets[i]) * uBlurWeights[i];",
            "    }",
            "",
            "    gl_FragColor = color;",
            "}"
        ].join("\n");

        // Pixel shader combines the bloom image with the original
        // scene, using tweakable intensity levels.
        // This is the final step in applying a bloom postprocess.
        var bloomCombineFrag = [
            "precision " + graphicsDevice.precision + " float;",
            "",
            "varying vec2 vUv0;",
            "",
            "uniform float uBloomEffectIntensity;",
            "uniform sampler2D uBaseTexture;",
            "uniform sampler2D uBloomTexture;",
            "",
            "void main(void)",
            "{",
                 // Look up the bloom and original base image colors.
            "    vec4 bloom = texture2D(uBloomTexture, vUv0) * uBloomEffectIntensity;",
            "    vec4 base = texture2D(uBaseTexture, vUv0);",
            "",
                 // Darken down the base image in areas where there is a lot of bloom,
                 // to prevent things looking excessively burned-out.
            "    base *= (1.0 - clamp(bloom, 0.0, 1.0));",
            "",
                 // Combine the two images.
            "    gl_FragColor = base + bloom;",
            "}"
        ].join("\n");

        this.extractShader = new pc.Shader(graphicsDevice, {
            attributes: attributes,
            vshader: passThroughVert,
            fshader: bloomExtractFrag
        });
        this.blurShader = new pc.Shader(graphicsDevice, {
            attributes: attributes,
            vshader: passThroughVert,
            fshader: gaussianBlurFrag
        });
        this.combineShader = new pc.Shader(graphicsDevice, {
            attributes: attributes,
            vshader: passThroughVert,
            fshader: bloomCombineFrag
        });

        // Render targets
        var width = graphicsDevice.width;
        var height = graphicsDevice.height;
        this.targets = [];
        for (var i = 0; i < 2; i++) {
            var colorBuffer = new pc.Texture(graphicsDevice, {
                format: pc.PIXELFORMAT_R8_G8_B8_A8,
                width: width >> 1,
                height: height >> 1
            });
            colorBuffer.minFilter = pc.FILTER_LINEAR;
            colorBuffer.magFilter = pc.FILTER_LINEAR;
            colorBuffer.addressU = pc.ADDRESS_CLAMP_TO_EDGE;
            colorBuffer.addressV = pc.ADDRESS_CLAMP_TO_EDGE;
            colorBuffer.name = 'pe-bloom';
            var target = new pc.RenderTarget(graphicsDevice, colorBuffer, { depth: false });

            this.targets.push(target);
        }

        // Effect defaults
        this.bloomThreshold = 0.25;
        this.blurAmount = 4;
        this.bloomIntensity = 1.25;

        // Uniforms
        this.sampleWeights = new Float32Array(SAMPLE_COUNT);
        this.sampleOffsets = new Float32Array(SAMPLE_COUNT * 2);
    }

    render(inputTarget, outputTarget, rect) {
        var device = this.device;
        var scope = device.scope;

        // Pass 1: draw the scene into rendertarget 1, using a
        // shader that extracts only the brightest parts of the image.
        scope.resolve("uBloomThreshold").setValue(this.bloomThreshold);
        scope.resolve("uBaseTexture").setValue(inputTarget.colorBuffer);
        pc.drawFullscreenQuad(device, this.targets[0], this.vertexBuffer, this.extractShader);

        // Pass 2: draw from rendertarget 1 into rendertarget 2,
        // using a shader to apply a horizontal gaussian blur filter.
        calculateBlurValues(this.sampleWeights, this.sampleOffsets, 1.0 / this.targets[1].width, 0, this.blurAmount);
        scope.resolve("uBlurWeights[0]").setValue(this.sampleWeights);
        scope.resolve("uBlurOffsets[0]").setValue(this.sampleOffsets);
        scope.resolve("uBloomTexture").setValue(this.targets[0].colorBuffer);
        pc.drawFullscreenQuad(device, this.targets[1], this.vertexBuffer, this.blurShader);

        // Pass 3: draw from rendertarget 2 back into rendertarget 1,
        // using a shader to apply a vertical gaussian blur filter.
        calculateBlurValues(this.sampleWeights, this.sampleOffsets, 0, 1.0 / this.targets[0].height, this.blurAmount);
        scope.resolve("uBlurWeights[0]").setValue(this.sampleWeights);
        scope.resolve("uBlurOffsets[0]").setValue(this.sampleOffsets);
        scope.resolve("uBloomTexture").setValue(this.targets[1].colorBuffer);
        pc.drawFullscreenQuad(device, this.targets[0], this.vertexBuffer, this.blurShader);

        // Pass 4: draw both rendertarget 1 and the original scene
        // image back into the main backbuffer, using a shader that
        // combines them to produce the final bloomed result.
        scope.resolve("uBloomEffectIntensity").setValue(this.bloomIntensity);
        scope.resolve("uBloomTexture").setValue(this.targets[0].colorBuffer);
        scope.resolve("uBaseTexture").setValue(inputTarget.colorBuffer);
        pc.drawFullscreenQuad(device, outputTarget, this.vertexBuffer, this.combineShader, rect);
    }
}

export default class Bloom extends pc.ScriptType {

    initialize() {
        this.effect = new BloomEffect(this.app.graphicsDevice);

        this.effect.bloomThreshold = this.bloomThreshold;
        this.effect.blurAmount = this.blurAmount;
        this.effect.bloomIntensity = this.bloomIntensity;

        var queue = this.entity.camera.postEffects;

        queue.addEffect(this.effect);

        this.on('attr', function (name, value) {
            this.effect[name] = value;
        }, this);

        this.on('state', function (enabled) {
            if (enabled) {
                queue.addEffect(this.effect);
            } else {
                queue.removeEffect(this.effect);
            }
        });

        this.on('destroy', function () {
            queue.removeEffect(this.effect);
        });
    }

}

// ----------------- SCRIPT DEFINITION ------------------ //
pc.registerScript(Bloom,'bloom');

Bloom.attributes.add('bloomIntensity', {
    type: 'number',
    default: 1,
    min: 0,
    title: 'Intensity'
});

Bloom.attributes.add('bloomThreshold', {
    type: 'number',
    default: 0.25,
    min: 0,
    max: 1,
    precision: 2,
    title: 'Threshold'
});

Bloom.attributes.add('blurAmount', {
    type: 'number',
    default: 4,
    min: 1,
    title: 'Blur amount'
});
3 Likes
