Play animation once (no anim state graph)

[DJ_Coco]

How can I play an animation once?
The code I have works with a looping animation, but not when I do not want it to loop. The animation simply doesn’t play.

AnimateCommand.attributes.add('object', {type: 'entity'});
AnimateCommand.attributes.add('animation', {
    type: 'json',
    title: 'Animation Asset',
    schema: [{
        name: 'stateName',
        title: 'State Name',
        type: 'string',
    }, {
        name: 'asset',
        title: 'Asset',
        type: 'asset',
        assetType: 'animation'
    }]
});
AnimateCommand.attributes.add('delay', {type: 'number', title: 'Delay in seconds'});

AnimateCommand.prototype.initialize = function() {
    //works when last parameter is 'true'
    this.object.anim.assignAnimation(this.animation.stateName, this.animation.asset.resource, 1, false);
    this.object.anim.speed = 0;
};

AnimateCommand.prototype.execute = function() {
    setTimeout(() => {
        this.object.anim.baseLayer.play(this.animation.stateName);
        this.object.anim.speed = 1;
    }, this.delay * 1000);
};

[yaustar]

Can you provide a public project example please?

[DJ_Coco]

The project is here: PlayCanvas | HTML5 Game Engine
Take a look at the “Instructor” scene, and press 2 to focus on the colored cube. The topright blue cube should begin to animate, but it only does so when I set it to loop in the code. (see Processes/Process 1/Step 2/Animate Command for the object with the script that controls it)

EDIT: Perhaps an issue with the anim.assignAnimation() function? I noticed a bug where I couldn’t assign multiple animations if I provide the optional parameters for speed and loop, but it works when I remove them (despite having used the default parameters). I’m not sure if the issues are related.

[yaustar]

The issue was that the wrong number of parameters were used for assignAnimation

loop is the fifth param but you were sending it as the fourth param

    this.object.anim.assignAnimation(this.animation.stateName, this.animation.asset.resource, 1, false);

So false is being set as speed for the state which is why it wasn’t animating.

It should be:

    this.object.anim.assignAnimation(this.animation.stateName, this.animation.asset.resource, null, 1, false);

[DJ_Coco]

Ah, okay. That explains a lot. The intellisense told me I was editing the speed and loop parameters, so I blame the IDE

Thanks for pointing it out.

[yaustar]

The intellisense thought the object was a AnimComponentLayer and not an AnimComponent.

Without hints, it has trouble understanding what the type is of script attribute so it just guesses.

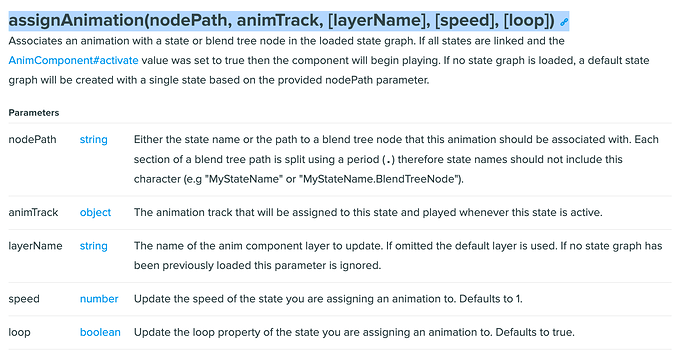

Here it is with hints:
