Pixel perfect art into PlayCanvas

Hello all,

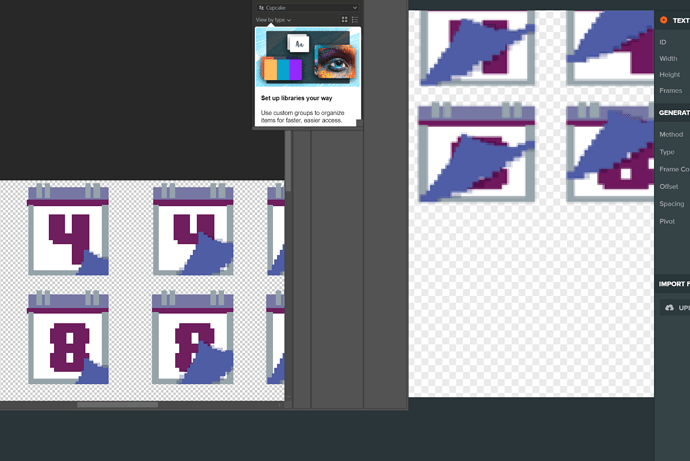

I have created some are that i made pixel perfect in photoshop when i move it into playcanvas it gets fuzzy and the ratio is wrong.

i have the filtering to point but that does not make it right

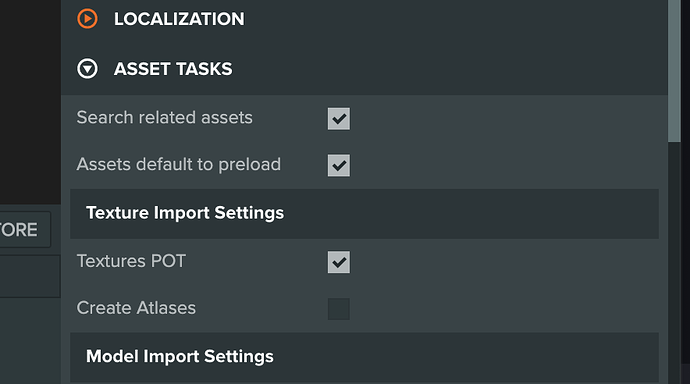

Are the image dimensions in powers of 2 (256, 512, 1024 etc)? If you want to keep the dimensions, disable POT conversion in Settings -> Asset Tasks

oh mine was some randome size when i did 1024x512 it fixed it right up i believe.

1 Like

Speaking of perfect pixel art, I tried importing sonic spritesheets from the genesis games (Sonic 1, 2, CD, 3&K) but it was also quite fuzzy. The only good spritesheet I found was one that was HD. But I’m wondering whether it’s possible for the sprites to stay the same quality when importing to PlayCanvas.

The closest you can get is to ensure that it’s a power of two texture and that filtering on it is set to point.
