How to orient ParticleEffects in world

Help & Support
1

I’m cloning and spawning entities with particle systems on them and haven’t figured out a way to orient them in the world. Ideally they would be oriented to match whatever character is emmiting them but so far rotation has no effect. Wondering if I’m going about it the right way. Perhaps there is a workaround?

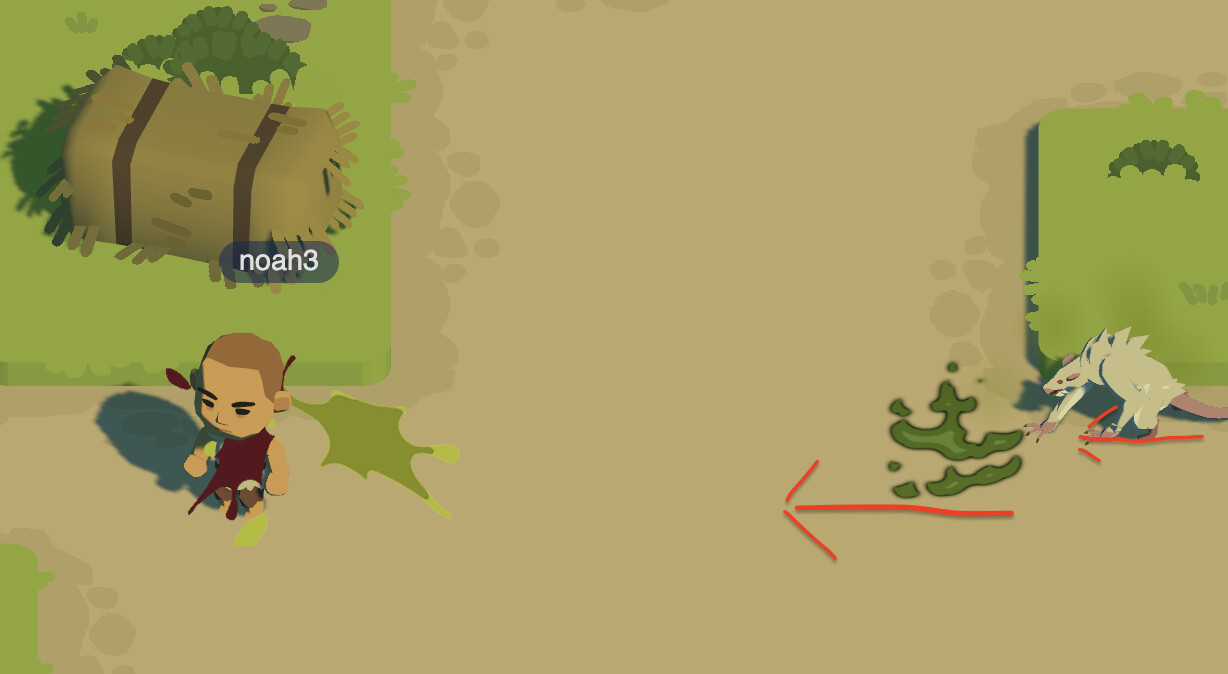

Here is the current orientation regardless of the parent or entity being rotated before play():

image1920×1062 116 KB

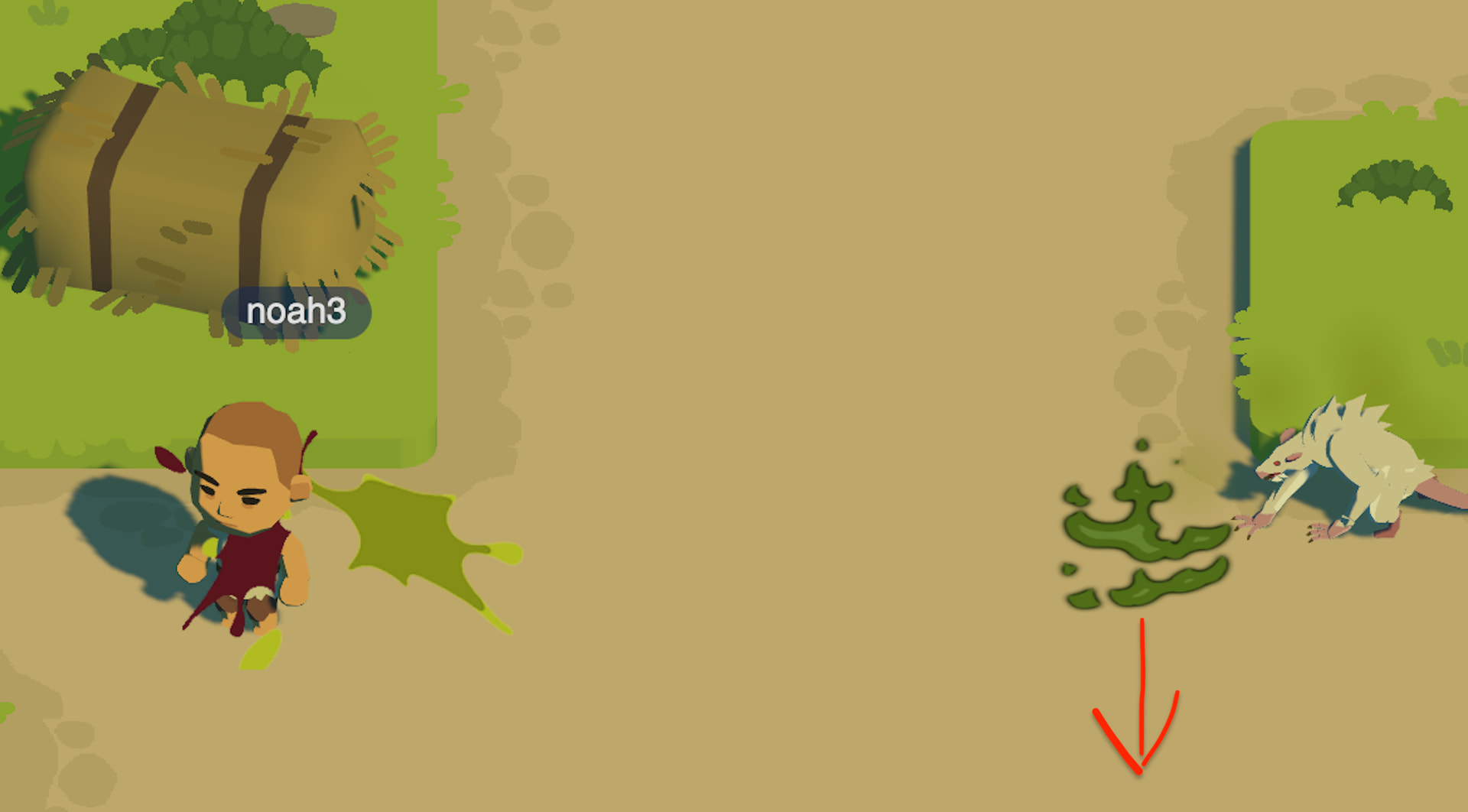

The preferred orientation would be that of the character emitting it:

image1228×674 72.1 KB

Here’s the code we are using to spawn the ps:

const clonedPS = [];
if (spawnedFX.particlesystem) clonedPS.push({ ps: spawnedFX.particlesystem, entity: spawnedFX });
spawnedFX.children.forEach(c => { if (c.particlesystem) clonedPS.push({ ps: c.particlesystem, entity: c }); });

let maxLife = 0.5;
clonedPS.forEach(({ ps, entity: psEntity }) => {
  if (rotation) psEntity.setRotation(rotation);
  ps.reset();
  ps.play();
  maxLife = Math.max(maxLife, ps.lifetime || 0.5);
});

Thank you!

2

Are the velocity graphs using local or world space?

3

Particle systems in PlayCanvas often simulate in world space by default, so rotating the entity after spawning won’t visually rotate the particles. Try disabling “Local Space”/enabling local simulation on the particle system, or set the rotation before cloning/resetting so emitted particles inherit the emitter orientation correctly.
