Help w/ vertex color from Blender 4.2 -> PlayCanvas?

Help & Support
1

I have a few models in Blender 4.2 with some vertex colors. Some of the vertex colors are painted, some are baked from lighting/all sources.

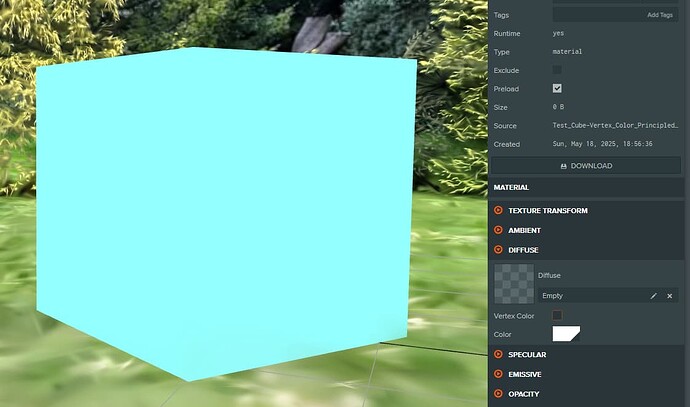

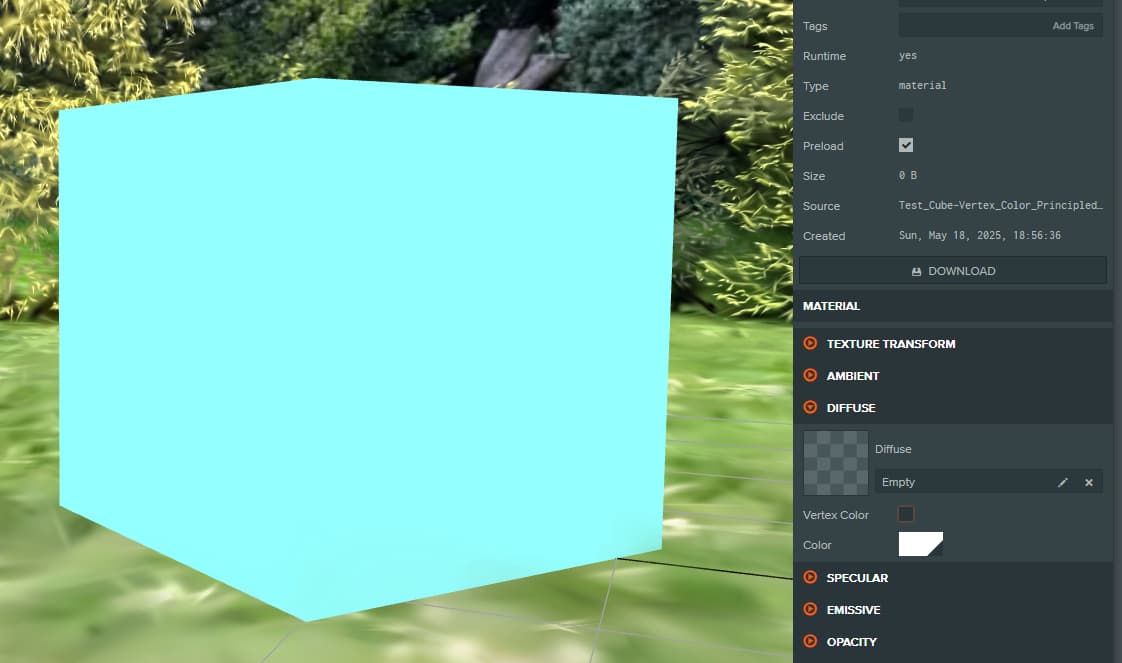

This is a test cube exported to gltf. The model looks good in Blender w/ this material setup. Then I export to gltf (making sure the export settings → Mesh → Vertex color exporting is enabled). In gltf-viewer, the vertex also colors appear fine (top left in my screenshot).

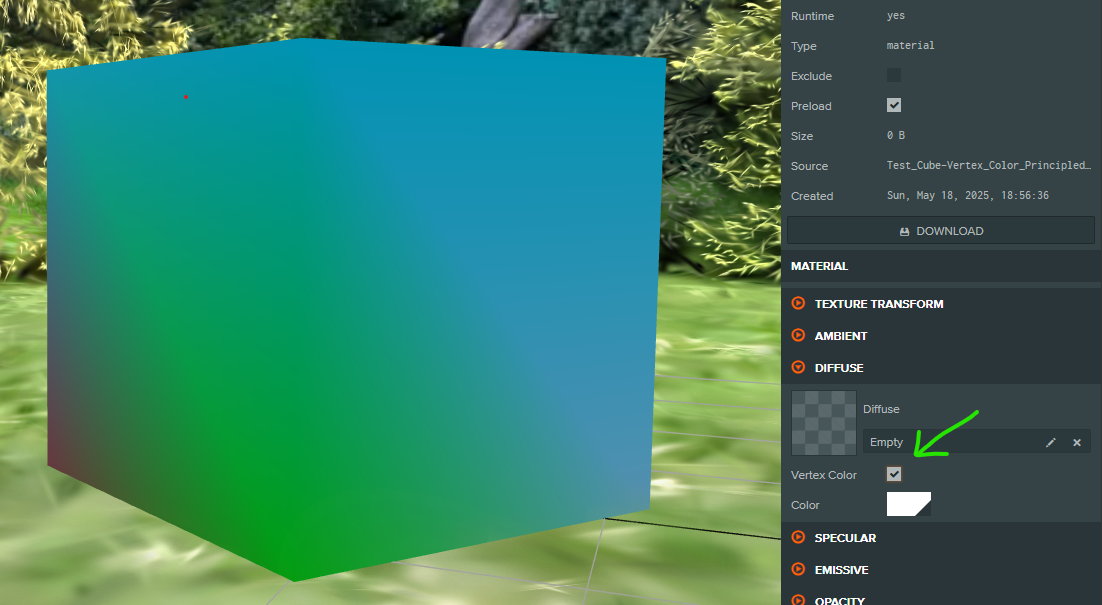

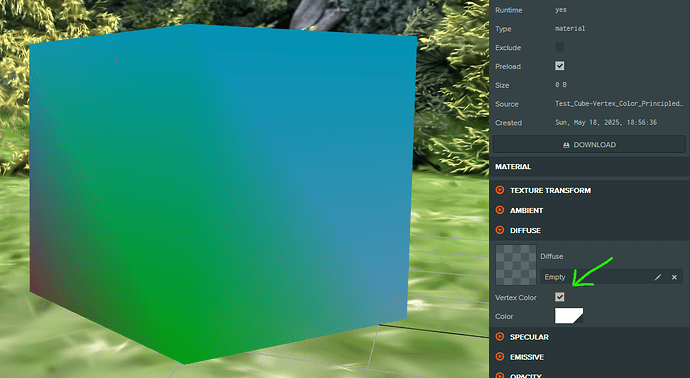

However, once uploaded to PlayCanvas, if I enable the Vertex Color prop on the material’s diffuse channel, it comes through all scrambled w/ colors I didn’t include (bottom left in my screenshot - there are no dark blue/purple areas on my cube, for ex, and there are in PlayCanvas).

image1920×1038 137 KB

Posted the same test cube on my Google Drive here if it’s helpful: Test Cube - Vertex Color + Principled.glb - Google Drive

I’ve tested a few other material setups, like for unlit materials, and none work quite as expected. My vertex color attribute in Blender is of type Face Corner → Byte Color, but I also tried the other options to no avail. I’ll also note that vertex colors come through largely as expected using .fbx export → PlayCanvas.

Is this a new bug? Or am I just doing something wrong? Let me know if anyone has a hunch, thanks!

2

It’d be worth testing with a cube from here, to see if this works: glTF-Sample-Models/2.0/BoxVertexColors at main · KhronosGroup/glTF-Sample-Models · GitHub

3

Tested. The cube you linked looks good in gltf-viewer. However this cube is pure vertex color and no material - so PlayCanvas can’t read it at all and you can’t even add a new material it.

The cube you linked also imports into Blender with no material, so there’s no way for me to reverse engineer the material setup to export to vertex colored mats going forward. Rats.

image1920×973 74.6 KB

Good suggestion, though!

1 Like
4

I can definitely confirm that it does not import correctly to the Editor.
Viewing it here works well, so that means the engine can render it correctly: Model Viewer

But the import into the Editor messes it up.
I created an issue for it, but I suspect it won’t be fixed before the early Jan. Please ping again early Jan as a follow up.

@slimbuck

1 Like
