In regards to the firefox issue. I believe it can be resolved by checking oldData.byteLength != 0 before doing the postMessage and the setData.
Firefox does not yet implement ArrayBuffer.detached to indicate when the buffer has been transferred, but my breakpoint debug shows the length is zero:
Oh thatās interesting. I wonder why firefox has a detached buffer thereā¦
It seems to be called repeatedly (I stepped it 5 times through before I just let it run to the error). I havenāt hunted back further through that code.
Ah yes, I forked it this morning but Iāve been using the ācleanā read-only version since I found the first error. Great stuff, I think thatās enough to get me moving again on Monday. Cheers!
1 Like
Weāll be also promoting the new engine (1.67.1) to the Editor early next week (probably Monday) and so the splats will work with the default engine too.
1 Like
This has been released, see the test project here: PlayCanvas 3D HTML5 Game Engine
2 Likes
Nice, you fixed the FF problem with arraybuffer access too!
EDIT: I spoke too soon, itās fine if you run from the āplayā button but if you ālaunchā from editor it still does this.
There seems to a be a problem with the depth sorting for the splats.
I havenāt dug into it yet, but Iāll take a look this afternoon.
Hereās a video of the issue (I added a lego r2d2 splat to the first person demo level):
File is 17MB which exceeds the 8MB cap here. Iāll see if I can cut the video down some moreā¦
It works great with the depth sorting vs 3D geometry though! Perfect occlusion coming through the doorway.
EDIT: confirmed, it does the same with the guitar example. So itās not just my ply file
Project is public:
https://playcanvas.com/project/1171413/overview/firstpersonsplat
I didnāt get as far into the code as Iād hoped to, but I wonder if the problem might be the camera angle to the splat? It works fine in the simple demo where you see it from a fixed camera and itās rotating, so that seems to rule out a problem with the gaussian sort orderā¦ unless itās assuming a fixed camera somewhere āin frontā of the object. When the camera is moving like the first person demo, any global assumptions about āforwardsā will fail and Iād expect to see something like this (an inside out R2D2, poor thing!)
the gs script you have there has a camera property ā¦ that is the camera that is used for the splat sorting. You need to attach the camera on the character, as thatās the one that is moving around, not the other one.
1 Like
OMG I canāt believe I didnāt spot that, thank you.
No idea why a first person controller has two camerasā¦ but yes, that definitely explains it
1 Like

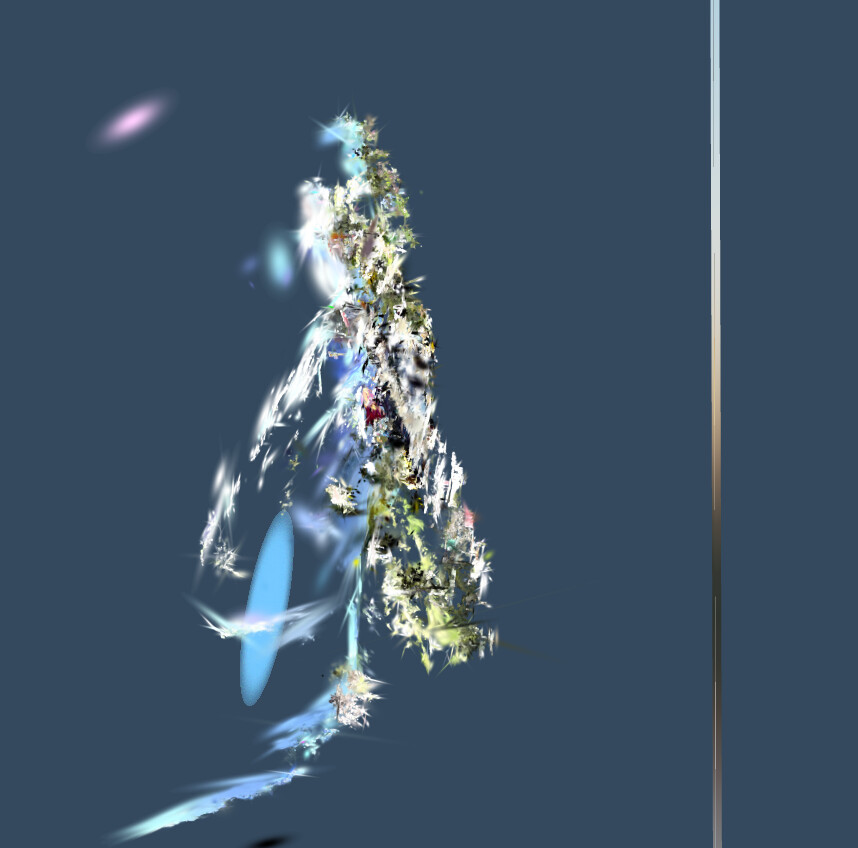

Hello! Using the (amazing) rough port of antimatter15 for displaying splats I notice that there is a jitterintg vertical line in the background:
It seems persistant no matter what splat I load.
Anybody have a clue what could be causing this and how to fix it?
Thanks!
Is this your implementation of splat rendering?
Do you get that issue if you drop your ply file to our viewer? PlayCanvas glTF Viewer
No, I just forked this and changed the logo. Is there a project around that I can fork that uses the official implementation of 3DGS?
I tried using this but when I upload my own ply (cleaned with supersplat), I cannot drag it onto the the field where the ply is loadedā¦ I am noob =\
Thanks!!
This one mentioned above:
https://playcanvas.com/project/1165904/overview/gaussiansplatdemo
Note that weāll be releasing a new engine which will change this a bit in a week or so ā¦ as this project is a pre-release.
Thanks, and I tried that project. But I cannot figure out why I canāt load my own ply file. It displays fine in supersplat and the splatviewer. I upload my ply file into the assets, but as opposed to the guitar file, I cannot drag and drop my ply file into the GS entity modelAsset field.
I just checked this and it looks like weāve accidentally released half a PLY import pipeline. The file imports as āGsplatā asset instead of binary asset. Weāll get this fixed asap.
I just realised that I noticed that too, forgot to mention it. Looking forward to the fix!
Thanks again!
Exporting .splat works well, but it seems that loading them as gsModel is currently not possible. Is there any plan to support the loading of raw .splat files?
Advantages:
- .splat files can be streamed in and are sometimes much smaller.
- Public Gaussian splat repositories usually store .splat files (e.g., polycam, hugginface, etc.) that can be easily referenced.
Thanks!
Hi @TRT,
Sorry for the late response, I missed your message somehow.
I havenāt seen .splat files being made available from public repositories. Can you provide any links to these? Iāve only seen models offered in uncompressed PLY format.
We support loading uncompressed PLY and a compressed variant. The compressed variant does a better job of compressing the data than .splat. You can read more in the blog post.
To give you an idea of sizes, for a guitar.ply scene I created:
Original Uncompressed .ply: 132.8MB
Compressed .ply: 1.5MB
.splat: : 2.9MB
Thanks!
1 Like
