Gamepad help please

Help & Support
21

@Leonidas

22

@WilliamBoersma31

Quick example:

var Main = pc.createScript('main');

// initialize code called once per entity
Main.prototype.initialize = function() {
    this.app.gamepads.deadZone = 0.1;
};

// update code called every frame
Main.prototype.update = function(dt) {
    var gamepads = this.app.gamepads;
    var x = gamepads.getAxis(pc.PAD_1, pc.PAD_L_STICK_X);
    var y = gamepads.getAxis(pc.PAD_1, pc.PAD_L_STICK_Y);
    if (x !== false && y !== false) {
        console.log("x: " + x.toPrecision(3) + " | y: " + y.toPrecision(3));
    }
};

Some more examples:
http://playcanvas.github.io/#input/gamepad.html

You can find a bunch of constants for the pad here: https://developer.playcanvas.com/en/api/pc.html#PAD_1

23

@yaustar thanks I’m gonna go add this to my game

24

can anyone tell me what is wrong with this line of code?

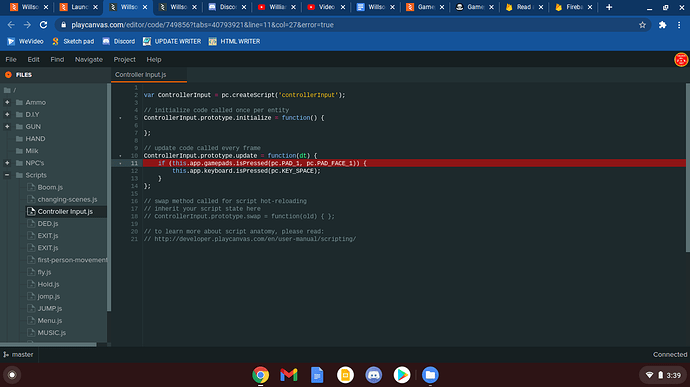

image1366×768 95.4 KB

25

What’s the error message?

26

[Controller%20Input.js?id=40793921&branchId=1303e9b3-0978-47b7-b1c7-7f286697e2fb:11]: Cannot read property ‘isPressed’ of null

TypeError: Cannot read property ‘isPressed’ of null
at scriptType.ControllerInput.update (https://launch.playcanvas.com/api/assets/files/Scripts/Controller%20Input.js?id=40793921&branchId=1303e9b3-0978-47b7-b1c7-7f286697e2fb:11:27)
at ScriptComponent._scriptMethod (https://code.playcanvas.com/playcanvas-stable.js:44394:19)
at ScriptComponent._onUpdate (https://code.playcanvas.com/playcanvas-stable.js:44421:11)
at ScriptComponentSystem._callComponentMethod (https://code.playcanvas.com/playcanvas-stable.js:44889:49)
at ScriptComponentSystem._onUpdate (https://code.playcanvas.com/playcanvas-stable.js:44901:9)
at Function._helper (https://code.playcanvas.com/playcanvas-stable.js:29030:12)
at Function.update (https://code.playcanvas.com/playcanvas-stable.js:29041:9)
at Application.update (https://code.playcanvas.com/playcanvas-stable.js:49905:20)
at Application.tick (https://code.playcanvas.com/playcanvas-stable.js:50509:16)
at Application.start (https://code.playcanvas.com/playcanvas-stable.js:49897:9)

27

Sounds like you haven’t enabled gamepads in the project settings.

See Gamepad help please

28

you were right.

29

@yaustar now it just does nothing

30

The code in your if statement does nothing so I’m not sure what you were expecting :sweat_smile:

31

Also I see that you are using a chrome book, I would check the gamepad works on that laptop with https://gamepad-tester.com/

32

i already did test the game pad does work i was trying to make it so that when i press the button it counts as pressing space.

33

The function you are calling is isPressed on the keyboard object which returns a true/false value.

It doesn’t simulate a key press.

Call the function/logic that is executed when space is pressed instead.

34

yeah i fixed thanks.

35

ok but how do i use -y and -x on the axis as a input like i can positive x and y?

36

I don’t understand what you mean?

37

@yaustar like if i use pc.PAD_1, pc.PAD_L_STICK_X that works but if i use pc.PAD_1, pc.PAD_L_STICK_-X That does not work.

38

pc.PAD_L_STICK_X returns a value of -1 to 1

-1 being left, 1 being right

39

so if were to do something like this
var x = gamepads.getAxis(pc.PAD_1, pc.PAD_L_STICK_X);
if (x = 1) {
right = true;
}
if (x = -1){
left = true;
}
if (x = 0) {
left = false;
right = false;
}

if (right) {
entity.move right (not real code)
}

if (left) {
entity.move left (not real code)
}

Would that work?

40

More like this as someone may have a dodgy joypad that doesn’t reach the extremes

var x = gamepads.getAxis(pc.PAD_1, pc.PAD_L_STICK_X);
var left = false;
var right = false;
if (x !== false) {
    if (x >= 0.5) {
        right = true;
    }
    if (x <= -0.5) {
        left = true;
    }
}
